Vane Type Pneumatic Actuators - Dimensions
Vane Type Pneumatic Actuators - Dimensions, Pneumatic Actuator, Vane Pneumatic Actuators, Manufacturer, Supplier, Pune, Maharashtra, India.

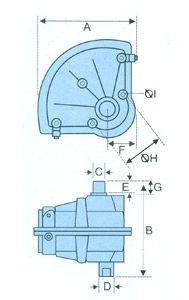

| Dimensions Model | A | B | C | D | E | F | G | H | I |
| DR - 01 | 100 | 116 | 12 | 17 | 13 | 35 | 16 | 54 | 5 / 16 "BSWX12 deep (3Nos.) |
| DR - 02 | 124 | 150 | 14 | 22 | 16 | 43 | 21 | 68 | 5 / 16 "BSWX16 deep (3Nos.) |
| DR - 025 | 148 | 150 | 14 | 22 | 16 | 48 | 19 | 79 | 5 / 16 "BSWX16 deep (3Nos.) |
| DR - 03 | 176 | 166 | 19 | 27 | 19 | 54 | 24 | 90 | 5 / 16 "BSWX16 deep (3Nos.) |
| DR - 035 | 212 | 196 | 19 | 27 | 19 | 66 | 24 | 113 | 5 / 16 "BSWX16 deep (4Nos.) |
| DR - 04 | 236 | 240 | 28 | 36 | 27 | 74 | 34 | 130 | 1/2"BSWX25 deep (3Nos.) |
| DR - 05 | 261 | 266 | 28 | 36 | 29 | 81 | 38 | 130 | 1/2"BSWX25 deep (3Nos.) |
| DR - 06 | 319 | 266 | 28 | 36 | 29 | 93 | 38 | 164 | 1/2"BSWX25 deep (4Nos.) |
| DR - 065 | 355 | 328 | 38 | 63 | 32 | 105 | 42 | 180 | 3/4"BSWX40 deep (4Nos.) |
| DR - 07 | 355 | 388 | 38 | 63 | 32 | 105 | 42 | 180 | 3/4"BSWX40 deep (4Nos.) |
| DR - 075 | 360 | 448 | 38 | 63 | 32 | 110 | 40 | 182 | 3/4"BSWX40 deep (4Nos.) |
| DR - 08 | 360 | 508 | 38 | 63 | 32 | 110 | 40 | 182 | 3/4"BSWX40 deep (4Nos.) |
